Cast Iron Loft Sidewalk & Elevator Replacement

Exterior of building with new sidewalk vault, elevator & elevator entrances, and new paint (photo by Mark La Rosa)

Information

Location: 72-76 Greene St New York, NY

Client/Owner: ASB L3 72-76 Greene St LLC

Owner Representation: Sierra Real Estate

General Contractor: G-Builders

Consultants

Structural: Silman

Civil Engineering: Key Civil Engineering

MEP Engineering: WB Engineering + Consultants

Elevator: Sierra Consulting Group

Expediting: Gillman Consulting

Project Status: Built

Size: 1,500 sq ft sidewalk + entire facade

72 greene exterior05 david grider architect

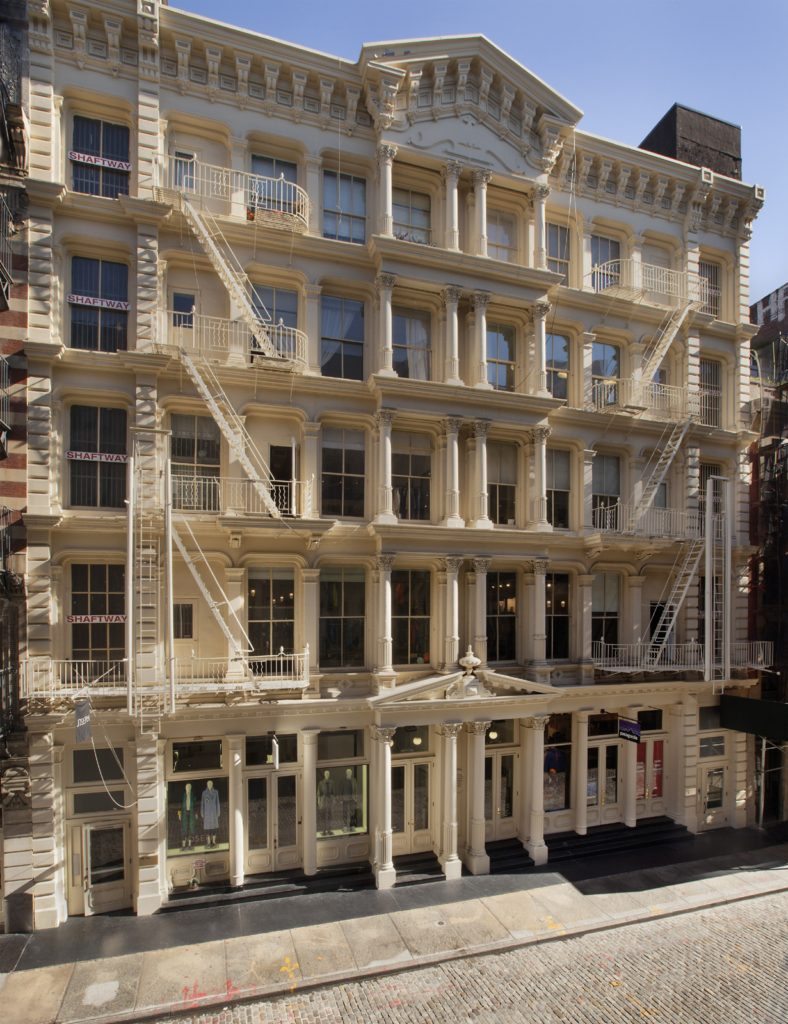

Exterior of building with new sidewalk vault, elevator & elevator entrances, and new paint (photo by Mark La Rosa)

72 greene exterior06 david grider architect

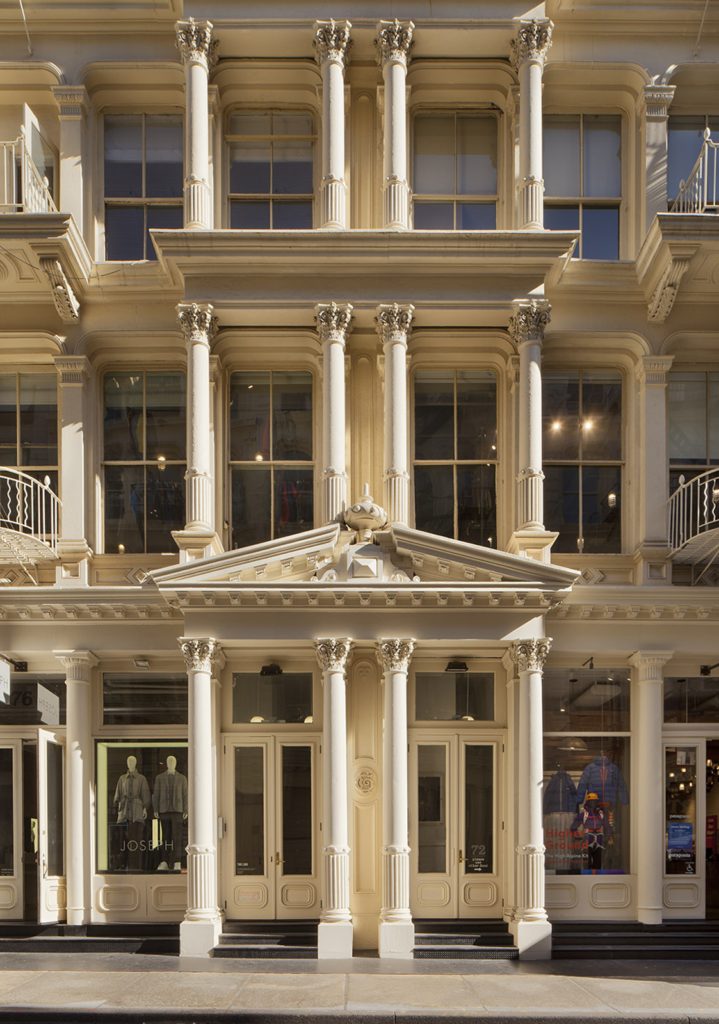

Detail of repainted facade with new sidewalk that included the reuse of existing granite flags (photo by Mark La Rosa)

72 greene exterior12 david grider architect

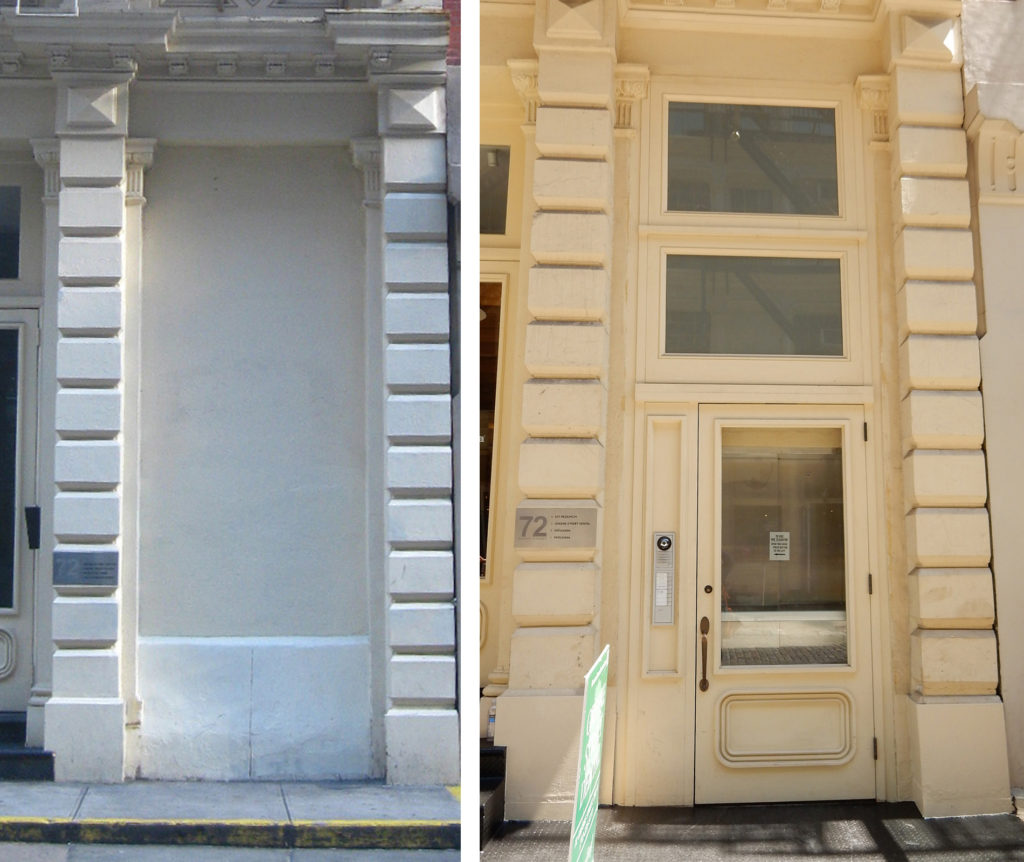

South elevator was replaced with entirely new unit that allowed for the creation of a new street entrance, providing ADA accessibility to the south half of the building

72 greene exterior11 david grider architect

Existing north elevator entrance was replaced with new historically appropriate entry

72 greene exterior02 david grider architect

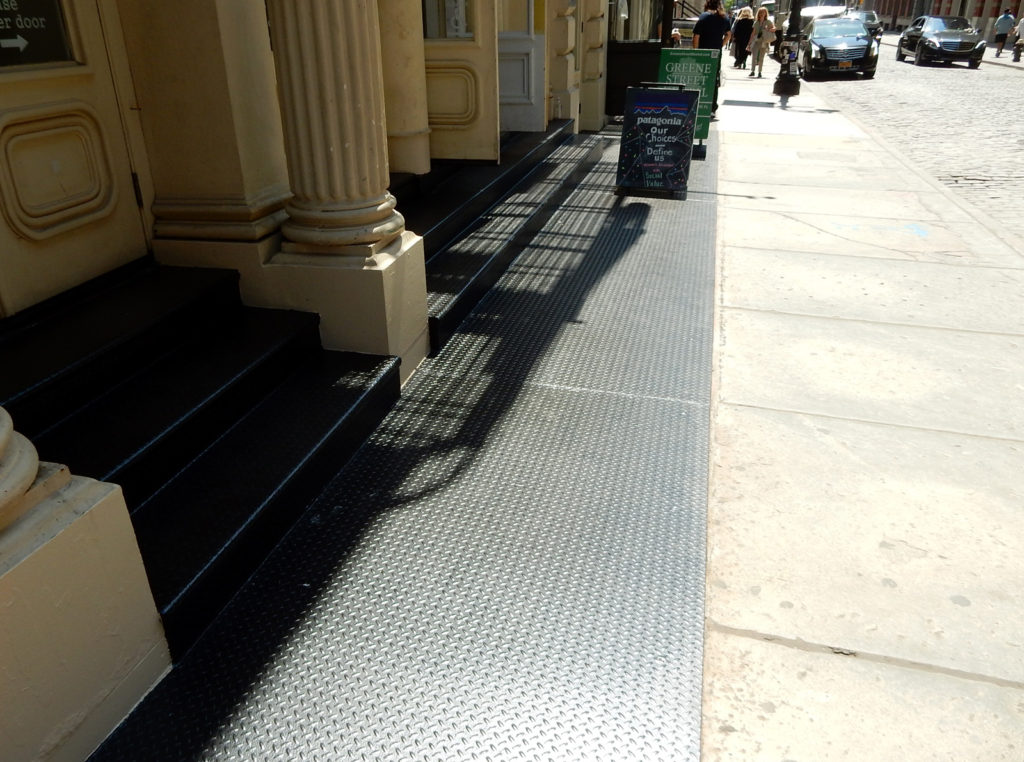

Detail looking south of steel diamondplate steps and historic granite installed on new structural slab below

72 greene exterior02a david grider architect

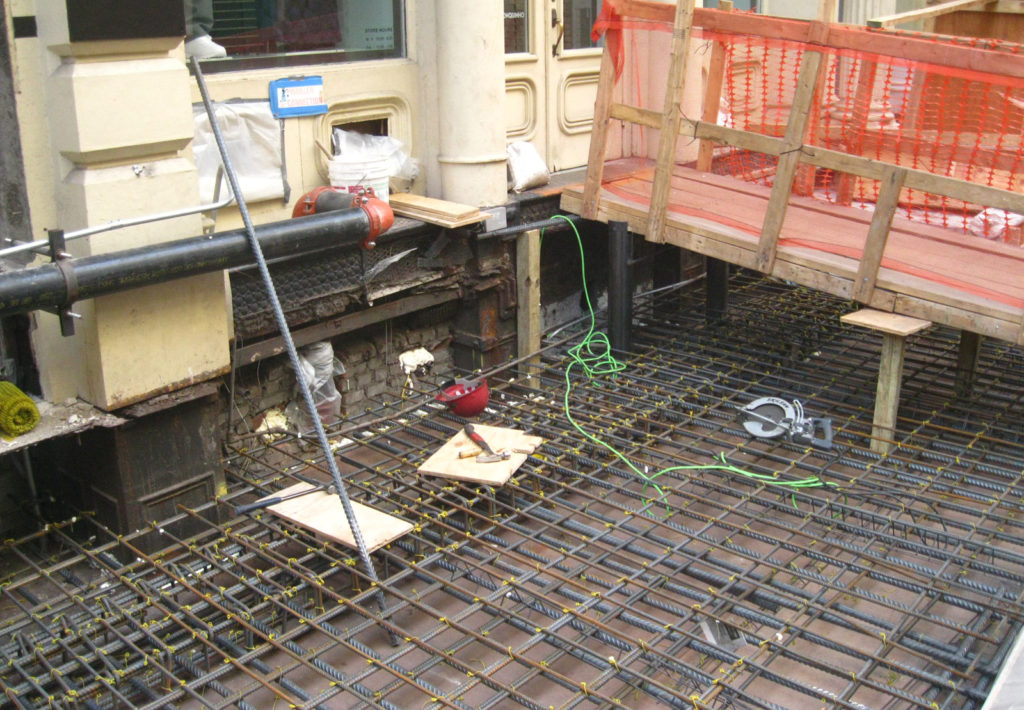

View during construction – entire substructure of sidewalk (known as a sidewalk vault, open to the cellar) was replaced with a new concrete slab in a tightly coordinated phasing schedule that allowed the building to remain in operation

72 greene exterior02b david grider architect

View south prior to start of work showing deteriorated conditions

72 greene exterior13 david grider architect

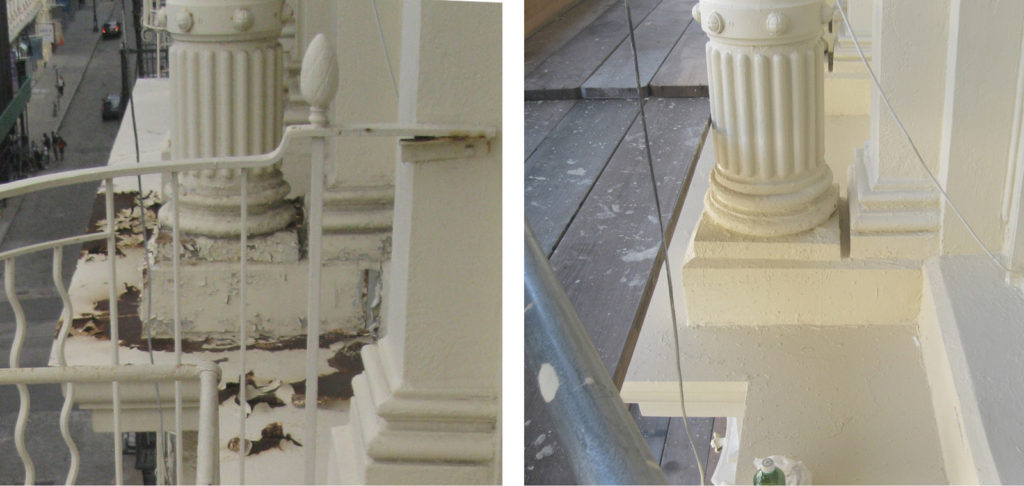

Before and after of repainting the facade
